Howie Griffin Series #G.26.88.22

Note: Click Here to see a video of this guitar in action!

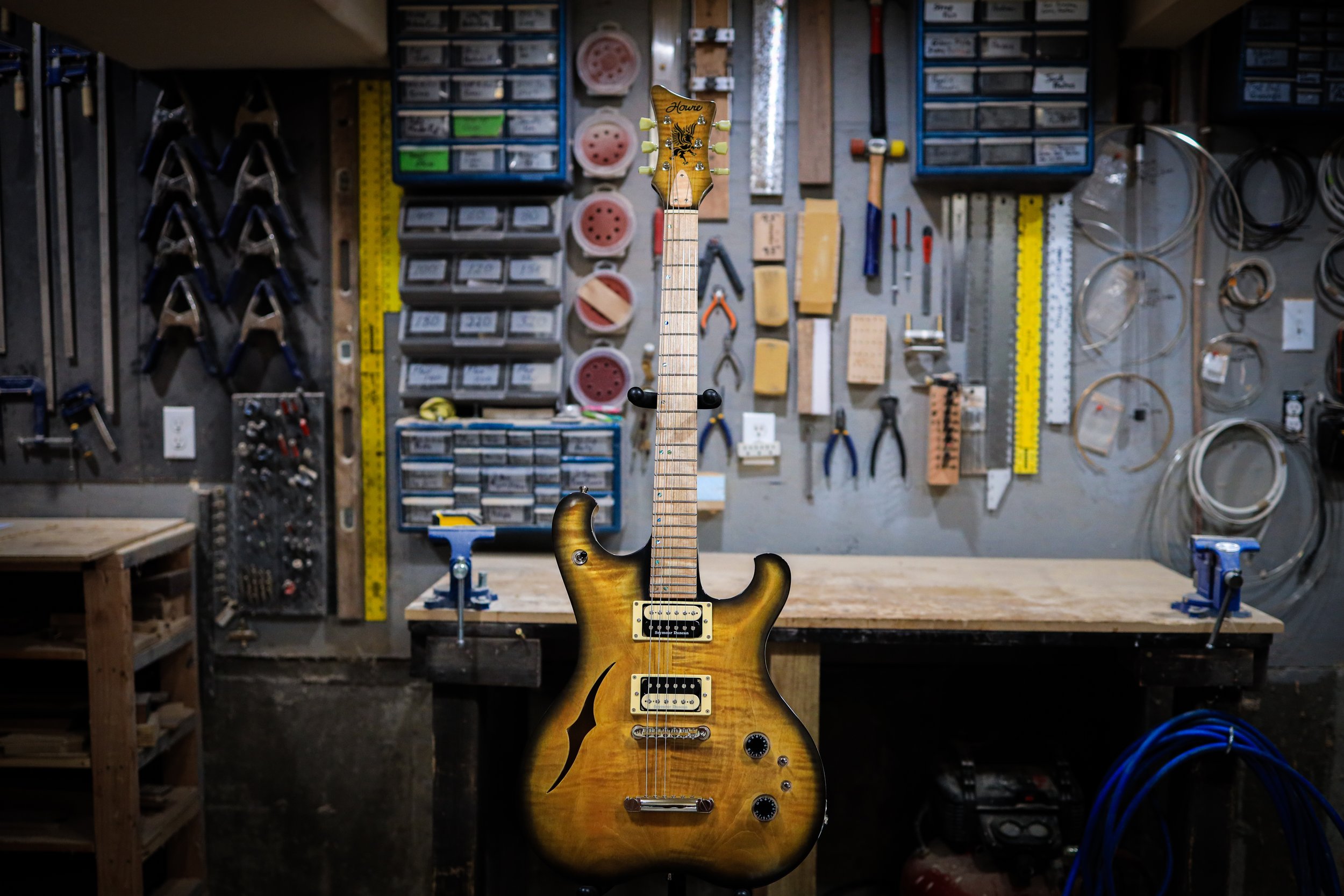

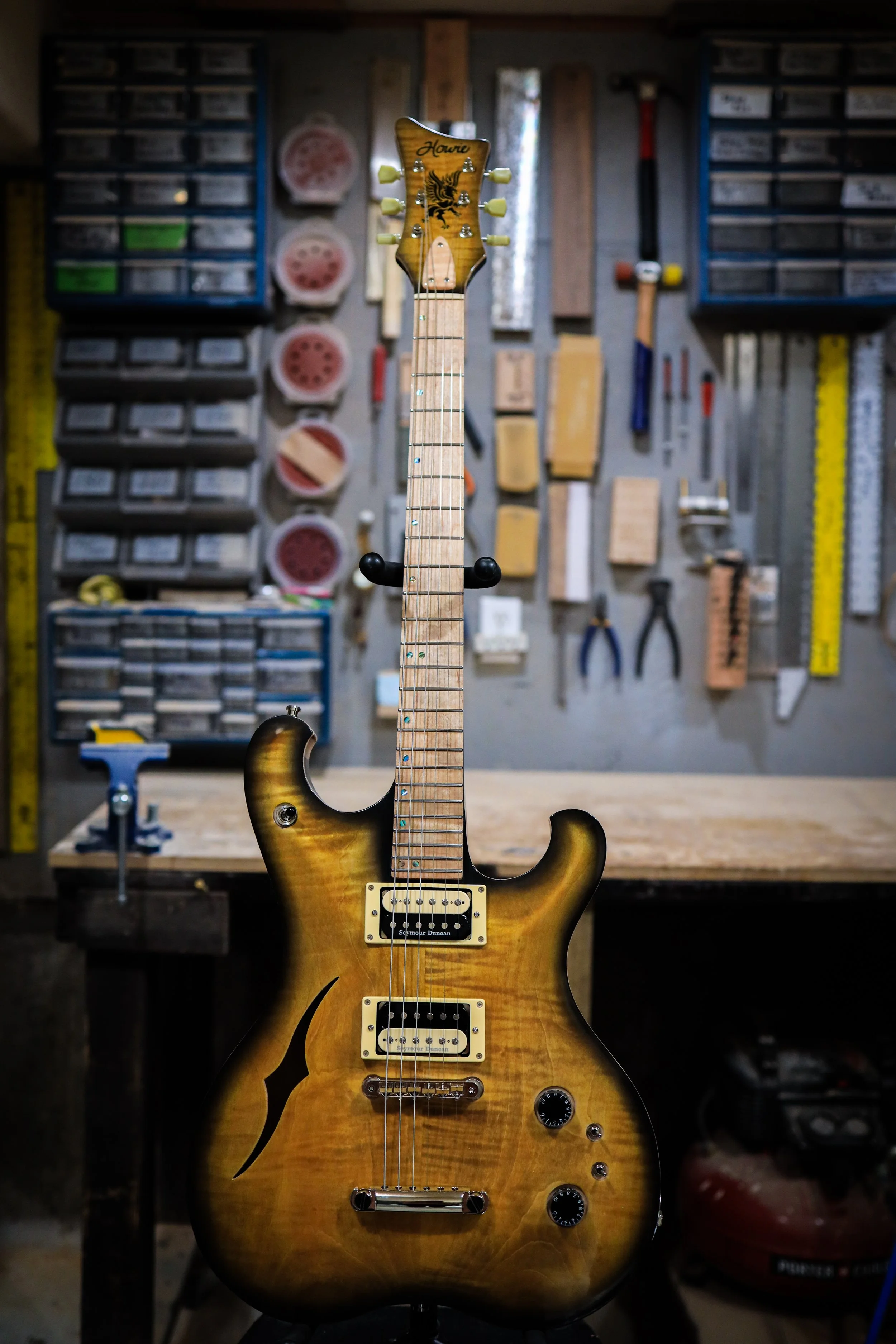

This 2022 Griffin Series guitar is made from hard maple, basswood, and curly maple. It has a 24-fret hard maple fingerboard with a scale length of 25in. The board has a compound radius of 15.5in at the tail down to 9.5in at the nut.

The Shape of the neck is what we call the Howie Thin Line. At the nut the depth is a shallow 0.88inches and at the 12th fret it is 0.91in. It was modeled after the 1960s Gibson ES 330 style neck…shallow all the way up the neck making it very easy on the hand, and great for wrap around chording. The width at the nut is 1.67inches. At the tail it is 2.16inches.

The pickups on this guitar are very unique. They are Seymour Duncan’s Green Magic Humbuckers. With the Green Magics, each pickup played by itself will give you the classic neck and bridge tones expected from a vintage wound humbucker. In the combined position you get a beautiful late 60s blues sound which is the result of the neck pickup having its magnets reversed. This puts the humbuckers out of phase with each other producing a unique clarity usually associated with single coils.

The hollow body design of this guitar makes it incredibly light weighing in at just 5lbs. Compare this to a typical Les Paul weighing in at 9 to 12 pounds.

The finish on this guitar was done with a catalyzed urethane that is normally used on automobiles. This high-end urethane dries very fast and hard allowing fewer coats and a thinner finish.

The rest of the nitty gritty details are all listed below….

  • Series: Griffin

  • Serial # G.26.88.22

  • Birthday: 9.15.22

  • Main Body Wood: Basswood

  • Top Body Wood: Curly Maple

  • Neck Wood: Hard Maple

  • Peghead Veneer: Curly Maple

  • Fretboard: Hard Maple

  • TR Cover: Curly Maple

  • Weight: 5.0lbs, 2.27kg

  • Carve Type: 0.5in Fibonacci

  • Scale Length: 25in, 63.5cm

  • Nut Width: 1.67in, 4.24cm

  • Tail Width: 2.16in, 5.49cm

  • Neck Depth @ Nut: 0.88in, 22.35mm

  • Neck Depth @ 12th: 0.91in, 23.11mm

  • Fretboard Radius: 15.45in to 9.55in, 39.24cm to 24.26cm

  • Fretwire: 0.09in, Stainless Steel

  • Neck Angle: 3.75deg

  • Torsion Angle: 0deg

  • Neck Carve: Howie Thin Line

  • Peghead Angle: 8.5deg

  • Pups: Seymour Duncan Green Magic Humbuckers

  • Pre-Amp:

  • Tuning Machines: Gotoh Vintage

  • Nut: Bleached Bone

  • Truss Rod: Hotrod Low Profile

  • Bridge: Kluson ABR Wired

  • Tail Piece: Gotoh Stop

  • Strap Pins: Chrome

  • Strings: S.I.T Heavy Bottom

  • Inlays: Abalone and Black Richlite

  • Pup Rings: Cream

  • Side Dots: Black Pearl

  • Knobs: Black Speed

  • Finish: DC 2000 Catalyzed Urethane
